NWE DTP IV

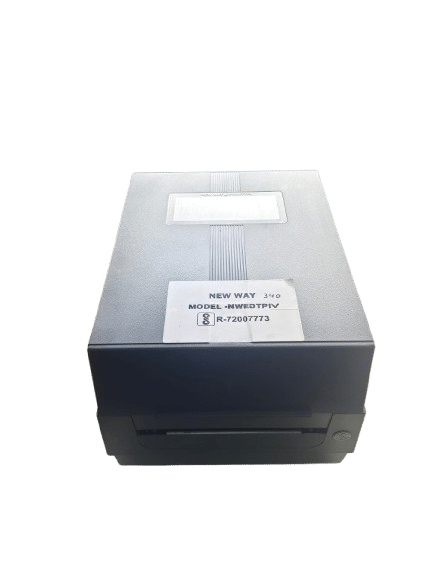

NWE DTP IV – 4-inch High-Resolution Thermal Transfer Barcode Printer

The NWE DTP IV is a robust and versatile barcode label printer designed for high-quality printing applications across industries. Built with direct thermal and thermal transfer printing technology, it ensures clear, durable, and professional-grade output.

Key Features

• High-Resolution Printing: Up to 300 dpi (12 dots/mm) for crisp labels, barcodes, and graphics.

• Wide Printing Area: Effective printing width of 108mm (4.25 inches).

• Fast Performance: Paper print speed up to 6 inches per second.

• User-Friendly Interface: Simple drop-in paper loading for convenience.

• Durability:

  • Print head life up to 100 km.

  • Auto cutter with 10 lakh cuts lifespan.

• Media Support: Compatible with thermal label paper/sticker, paper widths ranging 25.4mm to 108mm, and rolls up to 100mm diameter.

• Versatile Printing: Supports raster, bitmap, QR codes, PDF417, and multiple barcode formats (UPC, EAN, CODE128, etc.).

• Connectivity: USB 2.0, compatible with Windows, Linux, Mac OS, Android.

• Memory: 256MB DRAM, 16MB Flash for smooth processing.

• Certifications: BIS, ISO 9001:2015, and CMMI Level 3 certified quality assurance.

Applications

Ideal for retail, logistics, manufacturing, healthcare, and government projects, the NWE DTP IV ensures reliable performance and cost-effective label printing with precision.
